kci-dev:

I created kci-dev to make KernelCI useful directly in a kernel developer's workflow, and I continue to lead the project. At last year's LPC, we discussed closing that feedback loop. Today I want to show what we can do now, where the interfaces still fall short, and which workflow we should finish together. I will start with the work since last year, then leave room for discussion. Sources: https://lpc.events/event/20/contributions/2534/ https://github.com/aliceinwire/presentations/blob/8653ff4d41ad3854f666aecec43d043a6400f33c/LPC_2025_TALK/LPC_2025_TALK.md

kci-dev connects kernel developers' tools to KernelCI. Since last year's LPC, our work has focused on making that connection reliable and easier to use. We fixed cases where watching a job or running a bisection could hang. Rejected retries now report failure, validation checks that result identifiers match, and JSON output gives scripts one readable result document. Each of these changes matters when a person is no longer watching every command. An automation needs a result it can interpret and enough information to recover when something goes wrong. The reusable Python API lets other tools call kci-dev directly. External build reporting brings results from other build systems into KernelCI, while patchset submission accepts patches against a known base. The two applications we will examine turn these operations into patch review and release review workflows. They show how the work since last year can support tools that maintainers actually use. Sources: https://github.com/kernelci/kci-dev/pull/290 https://github.com/kernelci/kci-dev/pull/301 https://github.com/kernelci/kci-dev/pull/288 https://github.com/kernelci/kci-dev/pull/294 https://github.com/kernelci/kci-dev/pull/295 https://github.com/kernelci/kci-dev/pull/277 https://github.com/kernelci/kci-dev/pull/266 https://github.com/kernelci/kci-dev/pull/287

Imagine you are reviewing a patch series or preparing a stable update. You have a baseline and a candidate. KernelCI has results, but the decision still needs context. A failure count alone does not tell you whether the candidate introduced a problem. A different board, compiler or configuration can change what you are comparing. A missing test can also make the candidate look better than it really is. The useful question is what changed for this kernel, under comparable conditions, and what should the maintainer investigate next. That is the workflow I want kci-dev to support. We already have several of the operations we need. The remaining work is to connect them with explicit expectations about evidence and coverage. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/README.md https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/regression.py

Last year's slides included a reusable library as a priority. By v0.1.11 we had a public Python client, alongside the command-line interface. That lets another application call kci-dev and work with Python objects. External build systems can also construct and submit KCIDB build results, with separate storage commands for their artifacts. Patchset submission is another concrete step. We can submit local patch files or allowed patch URLs against an existing checkout. Validation, job watching and bisection have also received attention, together with packaging and machine-readable reports. There is an important version distinction here. The structured comparison and gate examples later in this talk use current main, beyond the v0.1.11 tag. The optional MCP server exists in the release, but its interface remains experimental. These are different levels of availability, so a workflow should pin the version it actually uses. Sources: https://github.com/kernelci/kci-dev/tree/v0.1.11 https://github.com/kernelci/kci-dev/compare/v0.1.11...e4c00874f1bcfbd6a6f1cdd513320b2e95713a42 https://github.com/kernelci/kci-dev/blob/v0.1.11/docs/patchset.md https://github.com/kernelci/kci-dev/blob/v0.1.11/kcidev/subcommands/storage.py https://github.com/kernelci/kci-dev/blob/v0.1.11/docs/mcp.md

Pause on the question before explaining the implementation. This is the inline two-patch tinyconfig smoke test from 5 October, separate from the CIP Patchwork series later in the walkthrough. The client reported version 0.1.11 at commit e4c0087 with no uncommitted changes. During both baseline and patched watching it printed a failure warning, even though the queried build records held result pass. For the patched build, the captured verification report contains node 6ac3a213f1577420a6adb3c1 with state available and result pass. The same report records watcher exit status zero. These are three signals from one workflow, and they do not say the same thing. Available is a lifecycle state; pass is an outcome. The exit code is a third interpretation made by the client. The script correctly retained an overall NOT_VERIFIED outcome. Several checks, including patchset hash and patched-revision provenance, were unsatisfied. A passing build record alone could not establish that the intended patched source was compiled. The question for a maintainer's automation is therefore which evidence has been collected and what conclusion that evidence supports. The next slide traces the inconsistent warning and exit code to their separate paths in the recorded client revision. Sources: https://github.com/aliceinwire/presentations/blob/3d5de050e6b6191210b6a61aab9ee92ef7b2c515/LPC_2026_MC/notes/evidence/patchset-conflicting-results-2026-10-05.json https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/maestro_common.py#L144-L172 https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/maestro_common.py#L284-L347

This explanation is tied to the exact source revision recorded by the smoke test. For a non-root node, maestro_check_node recognizes running, or done with a pass/fail result. Other states fall through to FAIL. Executing that unchanged function with the captured available/pass input reproduces FAIL; closing/pass does too. Changing the lifecycle state to done while keeping result pass produces DONE. The watching loop separately remembers the selected test's result. It emits its warning from the classifier output, removes the job from its waiting list, and later exits zero when the remembered test result is pass. That source path explains how a failure warning and a successful exit can coexist. This is a source-level reproduction of the recorded behavior, not a claim that a new watcher fix has been merged. The design requirement is to keep lifecycle state and test outcome explicit, and make warnings and exit status follow the same contract. A caller should retain the node ID, state, result and errors so an incomplete observation can be examined. That is part of the motivation for structured interfaces. It also leaves the separate provenance question intact: the original smoke test had not verified every link from the supplied patches to the built source. We should not reinterpret its NOT_VERIFIED result as successful end-to-end validation. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/maestro_common.py#L144-L172 https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/maestro_common.py#L284-L347 https://github.com/aliceinwire/presentations/blob/3d5de050e6b6191210b6a61aab9ee92ef7b2c515/LPC_2026_MC/notes/evidence/patchset-conflicting-results-2026-10-05.json

This is the small integration example I want people to take away. The caller supplies a repository URL, branch and full commit hash. The public client makes the Dashboard request and returns the result as Python data. Public Dashboard queries do not require a KernelCI submission token. That gives a patch review service or release report a direct interface. It can keep the result in its own workflow and handle recoverable failures through KciDevError. It does not need to parse terminal tables. For an external build system, submit_build constructs and submits a build result using configured KCIDB credentials. It reports a build that the caller has already performed. The boundary matters. kci-dev provides the client operations. The integrating application still owns its trigger policy, credentials and decision about what a result means. GIT_URL, BRANCH and COMMIT here are values supplied by that application. Sources: https://github.com/kernelci/kci-dev/blob/v0.1.11/README.md#using-kci-dev-as-a-python-library https://github.com/kernelci/kci-dev/blob/v0.1.11/kcidev/api.py

These are examples of plugins built around the reusable interface. Here, plugin means a separate application that imports kci-dev. Neither application requires a plugin registration mechanism inside the command-line tool. They can have their own commands, release cycles and report formats while sharing the same client operations. kci-patchwork owns the Patchwork-specific work: resolving a URL, obtaining the complete series, preserving patch order and recording a submission. kci_release_review owns the release-facing presentation of comparisons and their evidence. Both call Python methods directly instead of interpreting terminal tables. The library boundary does not make every workflow identical. Patchwork needs Maestro node and patchset identities. Release review compares explicit commits already represented in the Dashboard. Keeping that difference visible lets us reuse the service access without throwing away the identities each workflow needs. Both applications pin a specific library revision so their examples have a reproducible API contract. Sources: https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L5-L12 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/workflow.py#L230-L285 https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/client.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/report.py

This is the underlying command-line operation. First create or select a checkout of the intended base revision. Its checkout_nodeid becomes CHECKOUT_NODE here. Submit the patches in their intended order and select jobs available on that pipeline. The watch option can wait for the named test. There are two submission forms. Local text patches go through patch, while patchurl sends URLs from a domain the pipeline permits. A request uses one form or the other. The documented inline limits are thirty-two patches, up to ten mebibytes each, and binary patches are not supported. The application example adds the work around this operation. It freezes the series, remembers the base and returned identifiers, follows the resulting tree and prepares a report. Its captured CIP run later in the deck demonstrates submission and collection while jobs remain active. That early capture does not establish the outcome of the patched build. The later read-only recovery in the walkthrough supplies its terminal build results and baseline comparison. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/docs/patchset.md https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L102-L149 User-provided CIP series 1178390 command and running-result excerpt, reproduced in notes/evidence/patchwork-series-1178390.json.

The checkout argument is a KernelCI node identifier, rather than a Git branch name or a Patchwork series identifier. That node gives the pipeline a source revision and a tarball on which to apply the series. It also supplies the baseline that the application will later inspect. Choose the base from the tree the series targets. The most recent checkout on an unrelated branch is not a useful substitute. Preparation checks metadata and the source-tarball reference, but actual patch applicability belongs to the pipeline stage that applies the patches. Job selection is a separate decision. A small configuration is useful to exercise submission and compilation, but it may leave the modified driver disabled. For a CIP series, use the intended CIP revision and a supported job, then decide whether a boot or focused test is also needed. The captured command uses an ARM64 CIP build job. Its name alone does not establish coverage of every change in the series. Sources: https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/README.md#L104-L115 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L65-L100

A Patchwork URL is a useful input because it identifies the series in the place where review already happens. The application accepts series links and project-list links with a series parameter, including the CIP example that follows. It can also use other servers that expose a compatible public Patchwork API. A series can contain several patches. The application checks sequence information and requires a complete order rather than assuming that IDs or mail dates give the correct sequence. It writes the selected diffs and their checksums to the run directory, together with the series version and checkout metadata. Preparation can stop there for inspection. Adding submit starts the KernelCI operation and records the returned node and tree. Subsequent collection is tied to those identifiers. When the patched tree has terminal results, the application reads the original checkout and compares matching job subtrees. This gives a reviewer a report tied to a particular set of inputs. Sources: https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/README.md#L56-L75 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/patchwork.py#L207-L284 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/workflow.py#L101-L147

This is the command used for the captured run. The URL names series 1178390 in the cip-dev project. The explicit staging profile supplies the KernelCI endpoints and credentials. The checkout argument names the unpatched base, and the job filter selects the ARM64 CIP build. The short URL-first command is equivalent to the run subcommand. With submit present, it prepares the local inputs, submits the patchset and watches the resulting nodes. Without submit, the same workflow produces a prepared run and reports for inspection without starting jobs. The base node and job shown here belong to this recorded staging example. Someone adapting it should select a suitable current checkout and a job supported by their instance. The run directory is also significant: it is where the application remembers that a submission has already been attempted. For this capture the default path is runs/patchwork.kernel.org/series-1178390. We can return to that directory to collect new evidence. Sources: User-provided command for CIP series 1178390. https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/README.md#L19-L47 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/__main__.py#L250-L345

This is an excerpt of the output supplied for the CIP run, not a simulated successful result. The application has observed two nodes, including one descendant. One result is pass and the other is unset. Their states are closing and running, and the terminal flag is false. Those fields explain why the application reports RUNNING with exit code three. They demonstrate that submission has progressed into result collection and that the tool can produce a structured report for the run. The summary does not identify the passing node as a completed build, so we should not interpret the single pass count that way. The comparison fields are equally useful. They explicitly say that baseline comparison has not been performed. The full output states that comparison starts once the patched tree has complete terminal results, and gives paths to report.html and report.json. A later status request can update that evidence. This early capture supports the working submission and monitoring path. The terminal readback later in the walkthrough supplies the eventual build and comparison observations. Sources: User-provided CIP run excerpt. Complete supplied JSON is retained in notes/evidence/patchwork-series-1178390.json. https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L168-L214 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/results.py#L9-L102

For the recorded walkthrough, open the captured HTML evidence snapshot linked on this slide. It is a compact view of the recovered terminal results, with a link to the JSON evidence excerpt. It is clearly labelled as a reconstruction from public API snapshots, because the original local report was unavailable. The committed walkthrough notes explain how that collection was performed. These commands continue observation of the original saved run if it is available. Status collects a snapshot, and watch continues polling. They use the recorded endpoints and submitted identifiers. Restarting observation should not require preparing or submitting the series again. The application writes its attempt record before making the submission request. It refuses a repeated submission for that run directory, including when the original request has an uncertain outcome. That protection depends on preserving the directory. Preparing a different run directory is a separate operation and can create another submission. For an ordinary active run, status or watch refreshes the HTML and JSON reports. Once the patched tree has complete terminal results, collection also reads the saved baseline and compares matching results. If a request was interrupted before a reliable response, the application has an explicit reconciliation path for an operator to identify the original submission. This is a workflow concern that belongs around the library method, and the saved state makes it manageable. Sources: https://aliceinwire.github.io/presentations/LPC_2026_MC/examples/patchwork-series-1178390/report.html https://github.com/aliceinwire/presentations/blob/3d5de050e6b6191210b6a61aab9ee92ef7b2c515/LPC_2026_MC/notes/evidence/patchwork-series-1178390-completed.json https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L126-L166 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/workflow.py#L230-L317

We can now follow the earlier running capture to terminal results. A read-only query found patchset node 6ac44ef33a60498f8d8ab085 under the exact recorded checkout, with the recorded ARM64 CIP job filter. Its tree contains the patch application node, kernel build 6ac44f523a60498f8d8ab08f and kselftest compilation node 6ac454373a60498f8d8ab467. All three were done with result pass when collected on 6 October. No new jobs were submitted to obtain this evidence. The association with series 1178390 is supported by more than the parent ID. Patchwork reports version three with one patch, ID 14863610, titled PCI: rzg3s-host: Fix compilation warning. The stored pipeline patch0 artifact and the Patchwork diff have identical contents: 573 bytes with SHA-256 8240cab525488a49021afeaacccb5a496aedc7ff466219afbccfac5188c19c98. The calculated pipeline patchset hash also matches the root and build metadata. The source tarball differs from the unpatched base tarball, and the parent, revision and job filters match the recorded command. These observations support successful patch application and the selected builds. The kselftest child here is compilation of test binaries, not a record of executing those tests on a target. The patch title describes its purpose; this snapshot does not independently establish that a particular compiler warning disappeared. The original local run directory was unavailable, so the final collection was reconstructed from public API snapshots and replayed through the pinned plugin collector. The committed report labels that provenance explicitly. The next question is what happens when we compare this build-only run with its much broader baseline. Sources: https://github.com/aliceinwire/presentations/blob/3d5de050e6b6191210b6a61aab9ee92ef7b2c515/LPC_2026_MC/notes/evidence/patchwork-series-1178390-completed.json https://patchwork.kernel.org/api/1.2/series/1178390/ https://patchwork.kernel.org/api/1.2/patches/14863610/ https://staging.kernelci.org:9000/node/6ac44ef33a60498f8d8ab085 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/workflow.py#L194-L237

Ask the audience the title question before reading the status. Terminal means the submitted run has finished. A complete comparison makes a separate claim about the available evidence. In this snapshot, the kernel build and its kselftest compilation both match passing baseline results under the same ancestry and execution configuration. That gives two unchanged_pass comparisons. The plugin also reads the corresponding baseline job subtree, which contains 3,739 nodes across several runtime jobs and platforms. The submitted patched tree only contains the selected build and its compilation child. The collector retrieved every baseline page and classified 3,725 comparison entries: two unchanged passes, 3,699 missing entries, nine ambiguous entries and fifteen incomplete entries. Ambiguous and incomplete are evaluated before the simple missing category, so these are separate counts, not additional confirmed kernel failures. All other classification counts were zero. The unmodified collector at the pinned plugin revision therefore produced EVIDENCE_INCOMPLETE and exit code two, with terminal true, listing_complete true, comparison.performed true and comparison.complete false. This is the actual result of replaying the public snapshots through the collector. It is not a fabricated successful comparison or the output of a newly submitted run. The useful conclusion is precise: the requested builds succeeded, while the broader baseline comparison cannot establish equivalent runtime coverage. A reviewer can inspect the two passing pairs and the missing work in the captured HTML snapshot. Choosing the required jobs and platforms is part of the workflow contract. Expanding the test selection or narrowing an explicitly defined review scope is a decision for that workflow, not a reason to hide the incomplete result. Required coverage remains not_assessed and approved remains false in the report. Sources: https://github.com/aliceinwire/presentations/blob/3d5de050e6b6191210b6a61aab9ee92ef7b2c515/LPC_2026_MC/notes/evidence/patchwork-series-1178390-completed.json https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/comparison.py#L82-L238 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/results.py#L175-L200

This abbreviated Python example shows the shared operation that kci-patchwork calls. The configured client submits ordered diff strings against the chosen base and returns the patchset node. The application persists the returned node and tree identifiers before later collection. A patchset retains the original Git commit hash and adds patchset identity. Consequently, a commit-only query is insufficient to distinguish the base from the patched source. kci-patchwork uses get_node and paginated get_nodes queries filtered to the returned tree. It checks the patchset hash and parent relationships before interpreting descendant results. Its baseline comparison matches the relative job ancestry and execution configuration. Architecture, compiler, configuration and platform help establish that two results are comparable. Ambiguous matches or incomplete collections stay visible as incomplete evidence. This is why the Patchwork application uses a comparison adapted to Maestro nodes, while the release-review application can reuse the Dashboard's commit-based comparison directly. Both reuse the same Python client for service access. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/workflow.py#L194-L273 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L168-L187 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/comparison.py#L9-L79

Now we have results for a baseline and a candidate. Current main can compare the two explicit commit hashes and return a structured report. I use explicit hashes here because a review needs to remain tied to the revisions we intended to compare. The default latest-two-checkouts mode is convenient for exploration, but its inputs can change as new results arrive. The implementation groups results by their execution identity. That includes the origin, platform, architecture, compiler, configuration and test path, with builds, boots and tests handled separately. It preserves repeated results instead of simply overwriting them. The report carries the two commits, category counts and individual result identifiers, plus an incomplete flag. Optional known-issue lookup adds requests, so it has a cost. This gives another program useful evidence to inspect. It still depends on the quality of the metadata and the scope of the results returned by the backend. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/docs/results.md https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/regression.py

Here is how to read those categories. A pass becoming a fail or error can produce a regression. A failure becoming a pass can produce a fix. Failures on both sides are persistent. Results found on only one side become new or missing. History can refine the classification and mark a test unstable. We need to be careful with that unstable label. The code also uses it for other status changes, so it does not by itself establish that a test is flaky. Similarly, the classifier groups FAIL and ERROR together. A lab problem can therefore produce a signal that still needs investigation before we attribute it to the patch. My proposal is to preserve the underlying statuses, identifiers and history, then make the next action explicit: inspect the logs, retry under comparable conditions, or investigate infrastructure. Maintainers need enough evidence to check the classification and decide what should happen next. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/regression.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/tests/test_regression.py

Release review starts with revisions that already have KernelCI results. The application takes explicit baseline and candidate hashes, together with the origin, repository and branch. It calls the public comparison method and preserves its classifications rather than implementing another copy of the Dashboard classifier. It then adds the things a maintainer needs around the result: the observations used for each revision, selected failing-result details, bounded test-log excerpts and a portable report. The HTML provides a readable entry point, while JSON retains the complete comparison and collection errors. HTML limits how many rows it displays in each category, so the JSON link matters for large reports. The application also publishes reports through GitHub Pages. The current implementation includes a release watcher that discovers release pairs and keeps track of comparisons waiting for evidence. Explicitly configured comparisons remain available too. These are read-only workflows against KernelCI, with report publication handled by the application's own automation. Sources: https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/report.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/html_report.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/daily.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/releases.py

Here is the Python boundary inside the release-review application. ReviewClient subclasses KernelCIClient and records the result lists that the comparison actually consumed. It also bounds supplemental issue lookups and checks the identity of returned history. The underlying result requests and classification still come from kci-dev. The selection mapping contains origin, giturl, branch, base and head. The comparison requires full commit hashes. The limits shown here constrain additional evidence requests, which can otherwise become expensive for a large failure set. Three expanded results and an eight-kibibyte log limit are collection choices, rather than statements that every failure has been investigated. The returned report records the selected commits, comparison, observations, fetched details and omissions. That gives the HTML renderer enough information to explain an incomplete result without discarding the successful requests. An integrating application can therefore expose the evidence it has, identify what is missing and let a maintainer choose the next investigation. Sources: https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/client.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/report.py

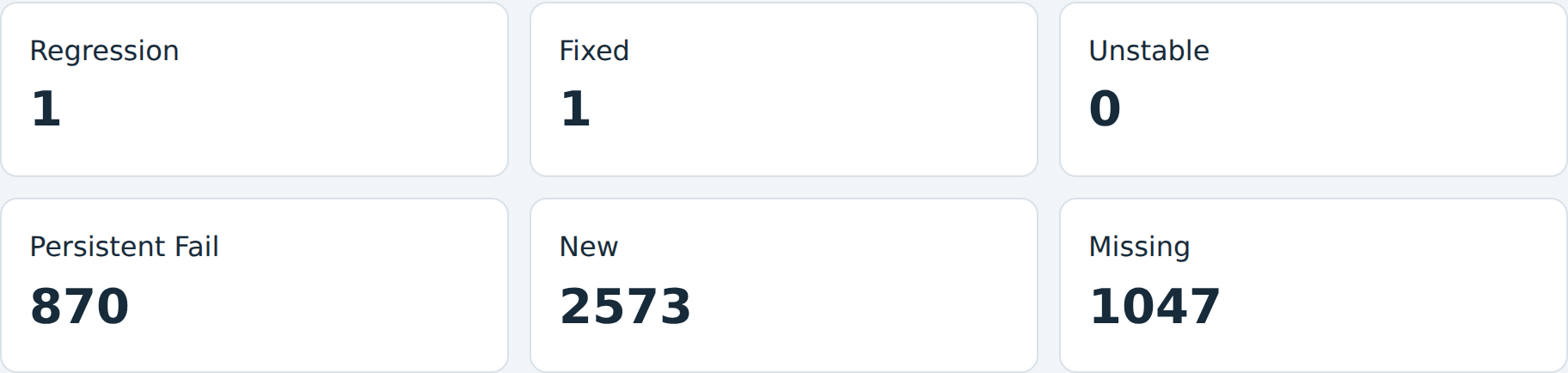

This image comes from the published linux-6.6.y report. The report compares v6.6.157 with v6.6.158 and was collected on 5 October 2026. The full commit hashes and source URLs accompany the captured evidence. These values describe that report, rather than a forecast or an invented demonstration. The classifier found one regression candidate, one recovery and no unstable entries. It also recorded 870 persistent failures, 2,573 new entries and 1,047 missing entries. Those categories describe observed executions, including their identities and repeated occurrences. They are not counts of distinct kernel defects. The report's REVIEW_REQUIRED status is useful because a maintainer can open the underlying records and investigate. Large new and missing categories show that the observed test sets changed substantially. This report disabled known-issue lookup and did not expand supplemental failure details, so the next step still needs those checks. Publication demonstrates that the application produced and shared a report. The report itself explains the limits of the evidence it contains. Sources: https://aliceinwire.github.io/kci_release_review/release-kernel-linux-6-6-y-v6-6-158/report.html https://aliceinwire.github.io/kci_release_review/release-kernel-linux-6-6-y-v6-6-158/report.json https://aliceinwire.github.io/kci_release_review/summary.json Captured report data: notes/evidence/release-review-2026-10-05.json.

This is the regression candidate behind the previous report's count of one. It is a watchdog timeout query test on the mt8195-cherry-tomato-r2 platform, using ARM64 and GCC 14. The baseline result is pass and the candidate result is fail. The report also retains the full configuration string, occurrence number and the two result identifiers. That is a useful starting point for investigation. It gives a maintainer a specific result pair to inspect instead of a general statement that a release became worse. The configuration in this record is defconfig with lab setup and Chromebook options, including the module-compression settings recorded in the JSON. Known issues were not checked for this entry, and the saved report did not expand its logs. The follow-up is to inspect the linked results and logs, check the lab context and any existing issue, and decide whether a comparable retry or kernel investigation is appropriate. A pass-to-fail observation identifies a candidate. Establishing its cause requires that additional evidence. Sources: https://aliceinwire.github.io/kci_release_review/release-kernel-linux-6-6-y-v6-6-158/report.json https://aliceinwire.github.io/kci_release_review/release-kernel-linux-6-6-y-v6-6-158/report.html

The CIP report gives a different outcome from the stable example. For this pair, both revisions have six passing builds. The candidate also has fifteen passing boots and one hundred test results, of which eighty-nine pass and eleven are skipped. The baseline has no observed boots or tests in this capture. The fifteen boots and one hundred tests account for the 115 new entries. The report's status is NO_REVIEW_SIGNALS_IN_OBSERVED_RESULTS, with exit code zero. There are no observed regression, persistent-failure, unstable or missing entries in this comparison. This is useful evidence, with a clear scope. The additional tests have no baseline counterparts here, and skipped tests remain visible as skips. Required coverage is not assessed and the report records release_approved as false. A maintainer can use these results alongside the project's required test plan. The point is to make the positive observations readable while retaining what the comparison can and cannot establish. Sources: https://aliceinwire.github.io/kci_release_review/release-cip-linux-6-12-y-cip-v6-12-111-cip32/report.html https://aliceinwire.github.io/kci_release_review/release-cip-linux-6-12-y-cip-v6-12-111-cip32/report.json

This published comparison shows why it matters to preserve incompleteness. The explicit commit queries returned useful observations, including one regression candidate and thirty-six recoveries. However, the branch-history response points to a different head revision. The application rejects that history rather than allowing it to silently alter the selected comparison. There is also a collection-budget limitation: 370 result IDs were not checked for associated issues. That does not mean they have no known issues. The report records both limitations and returns EVIDENCE_INCOMPLETE with exit code two, while keeping the exact-commit result data. This example demonstrates a working application reporting an unsatisfactory evidence state. It is a valuable result because it tells the reviewer what is missing. More recent branch history cannot automatically replace history for an older selected candidate, and repeatedly fetching the same mismatched response will not repair the identity problem. The integrating tool needs to expose that distinction instead of reducing every request to a green or red badge. Sources: https://aliceinwire.github.io/kci_release_review/stable-6-12/report.html https://aliceinwire.github.io/kci_release_review/stable-6-12/report.json https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/client.py

The gate command makes part of that policy executable. In this example I choose to fail on regressions and missing results. The default selects regression only. A policy violation returns one, while an incomplete comparison returns two. Command usage errors can also return two, so an integration should keep the report and diagnostic output. Zero means that no selected category triggered the policy. It does not establish that all the tests a maintainer expected actually ran. For example, if neither revision contains an expected test, a comparison cannot discover that expectation on its own. Missing only identifies an absence relative to the other side. For release review, I want a separate statement of required coverage: which configurations, platforms and tests must finish, and how recent the evidence must be. That is a proposed workflow contract beyond the current category-based gate. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/subcommands/results/__init__.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/libs/regression.py

The applications exercise the shared interface under real workflow constraints. The release-review adapter checks that history belongs to the selected candidate and makes a mismatch visible. It also passes configured endpoints into the client. Those protections are implemented in the application snapshot we inspected. The core compare and gate command paths in the inspected kci-dev main snapshot still construct a default client, and the underlying comparison needs stronger history scoping. This is a concrete opportunity to move a generally useful guarantee into the shared interface and test it there. We should distinguish those core limitations from the protections already present in the release-review application. Patch review exposes a different identity boundary: a patched source tree can retain the base commit hash. Its report therefore follows the patchset node and descendants and retains the unpatched baseline separately. In both cases, useful error reporting preserves completed work and explains the part that remains uncertain. Reliable shared behavior reduces how much each application must defend independently. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/subcommands/results/__init__.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/client.py https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/results.py#L106-L200 https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/kci_patchwork/comparison.py#L82-L238

These examples suggest a useful contract for the next integration. The client should provide consistent requests, explicit configuration, recoverable failures and structured results. The application should own how a user selects inputs, when work starts, and how the evidence reaches its intended audience. Coverage and acceptance policy also belong to the workflow. A stable maintainer, a CIP reviewer and a subsystem developer may require different architectures or tests. Reusing the client should make those differences easier to express. It should not hide them behind a universal success label. For a new application, start with an explicit source revision and endpoint, decide what evidence must be retained, and define how partial results appear. Pin the library revision because the package version alone does not distinguish every API change in these examples. Exercise failure and incomplete-data cases as well as the successful path. A useful integration can remain small when these contracts are clear. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/pyproject.toml#L11-L15 https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/requirements.txt https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L253-L270 https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/report.py

The optional MCP server exposes KernelCI operations to compatible automation and AI clients. A client can explore results and known issues, inspect nodes, and, with the required configuration, request a checkout or retry. Those operations use the public Python client. The interface is explicitly experimental. Tool names, arguments and response formats may change. Read-only queries and job-triggering tools carry different annotations, but those annotations are hints to the client, not an authorization system. The documented HTTP transport has no authentication layer, so local stdio is the straightforward option shown here. For this MC, I would treat MCP as another consumer of the same evidence and configuration contracts. It makes reliable shared methods more valuable. The release decision and the policy for starting jobs still belong to the integrating workflow and its operator. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/docs/mcp.md https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/mcp/tools_dashboard.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/mcp/tools_maestro.py

We now have concrete applications to improve, rather than only proposed integrations. Shared correctness remains a priority because every consumer depends on the meaning of the result. History identity and configuration propagation should be explicit guarantees, with tests that cover older revisions and incomplete data. For patch review, series discovery, frozen inputs and report generation already exist in kci-patchwork. The next useful evidence is a completed comparison for an appropriately chosen series and baseline, including failure cases and the configurations the change needs. The running capture in this deck is an intermediate observation, so it should not be presented as that final result. Required coverage is a separate workstream for both applications. We need a way to record expected jobs and platforms and decide when a report has enough evidence for a maintainer's policy. Connecting the resulting report to patch review or release preparation should follow the maintainer's existing process. The priority order is a proposal for this MC to discuss. Sources: https://github.com/aliceinwire/kci-patchwork/blob/1acedb7ab59a2bf8ab9934c4cf76727552c04b10/docs/workflow.md#L102-L142 https://github.com/aliceinwire/kci_release_review/blob/b328d0a60e46a1c7062d36b2d062d0fcac7ac442/kci_release_review/report.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py

Close by asking which extensions would help people in the room. Invite concrete examples: a missing feature, a plugin they would use, or a manual step they want to automate. Ask what the input and useful result would be, so the discussion can lead to an implementable contribution. Then ask where the reusable Python library belongs in their existing tools. The Patchwork website is a possible integration point to discuss: what KernelCI evidence should a reviewer be able to see or request while looking at a series? The kci-patchwork example shown earlier is a standalone application. This question proposes future website integration; it does not claim that the library is already embedded in Patchwork. Other participants may have release tools or project-specific Python services where the same interface would fit. For MCP, ask how people would use it in an actual development workflow. Result queries, known-issue lookups and investigation of a failed job are examples already supported by the experimental interface. Ask which interactions would be useful and how any job-triggering actions should fit the operator's existing policy. Keep this grounded in the task people want to complete. Finally, ask what kci-dev should focus on next. The room may prioritize a stronger public API, additional integrations, more reliable automation or a different unmet need. Invite participants to identify a concrete first contribution and who could help validate it with a real workflow. The aim is to shape the project's direction from those needs. Sources: https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/kcidev/api.py https://github.com/kernelci/kci-dev/blob/e4c00874f1bcfbd6a6f1cdd513320b2e95713a42/docs/mcp.md https://github.com/kernelci/kci-dev https://github.com/aliceinwire/kci-patchwork https://github.com/aliceinwire/kci_release_review
